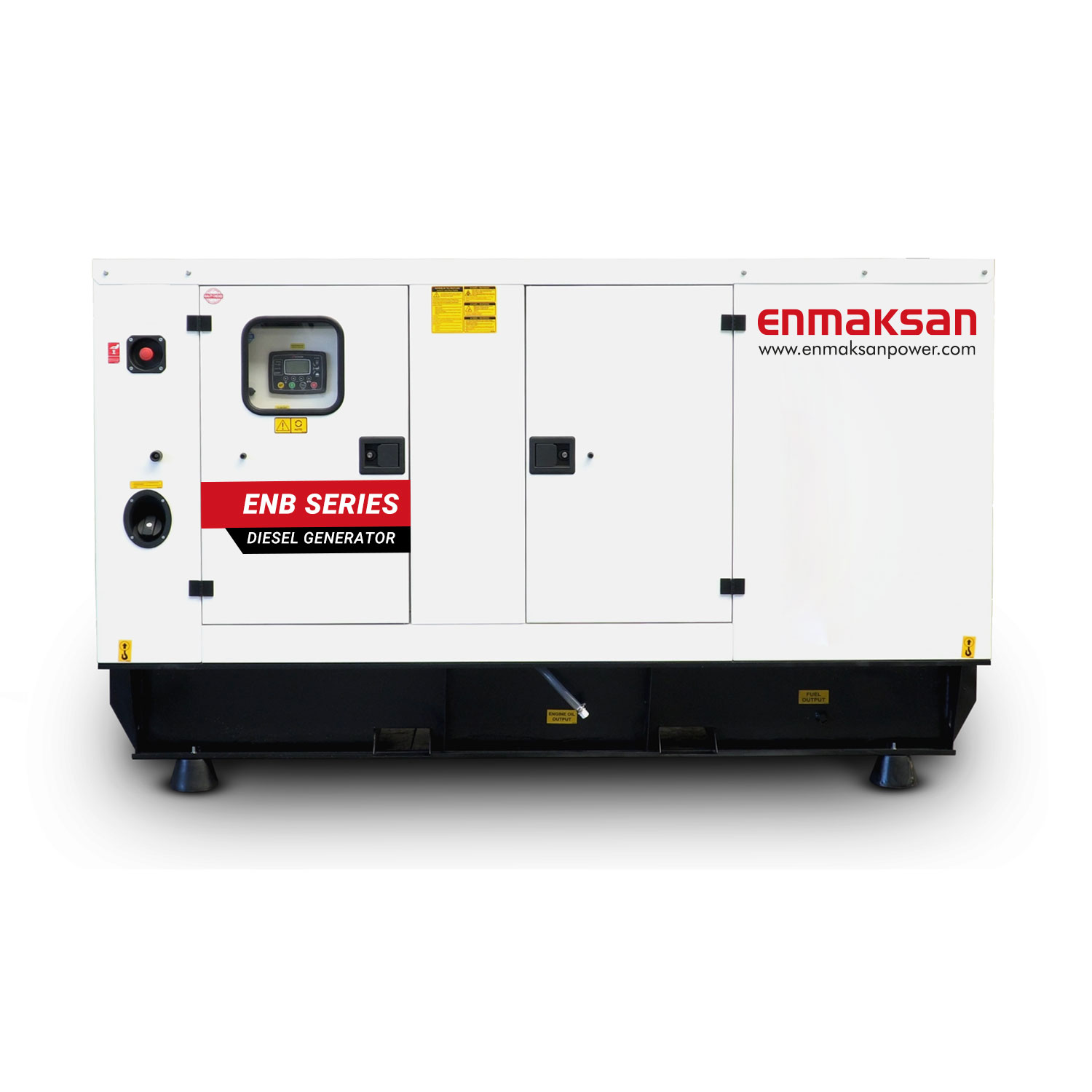

EN110B

DIESEL GENERATOR SETS

EN110B

Product Documents

Datasheet

EN110B
Category:

Genset Brand Enmaksan Power
Genset Model EN110B
Standby Power kVA 110
Prime Power kVA 100
Frequency Hz 50
Voltage V 230/400
Phase 3
Fuel Diesel
Control Panel Datakom 500
Country of Origin Turkey
Engine Brand BAUDOUIN
Engine Model 4M10G110/5
Standby Power kWm 90
Prime Power kWm 100
Fuel Type Diesel
Number of Cylinders and Type 4 – In Line
Bore x Stroke mm 105×118
Total Displacement L 4,087
Aspiration Turbocharged and Aftercooled
Compression Ratio 17.5:1
Rated Speed rpm 1500
Injection Type and System Indirect injection
Governor System Electronics
Operating Voltage Vdc 12
Cooling System Water Cooled
Air Filter Type Dry Type
Maranello  M110

Dimensions Without Canopy and Weight

L x W x H mm TBA
Weight kg TBA
Fuel Tank Capacity kg TBA

Dimensions With Canopy and Weight

L x W x H mm TBA
Weight kg TBA
Fuel Tank Capacity lt TBA
Desibel db(A) 65-75
