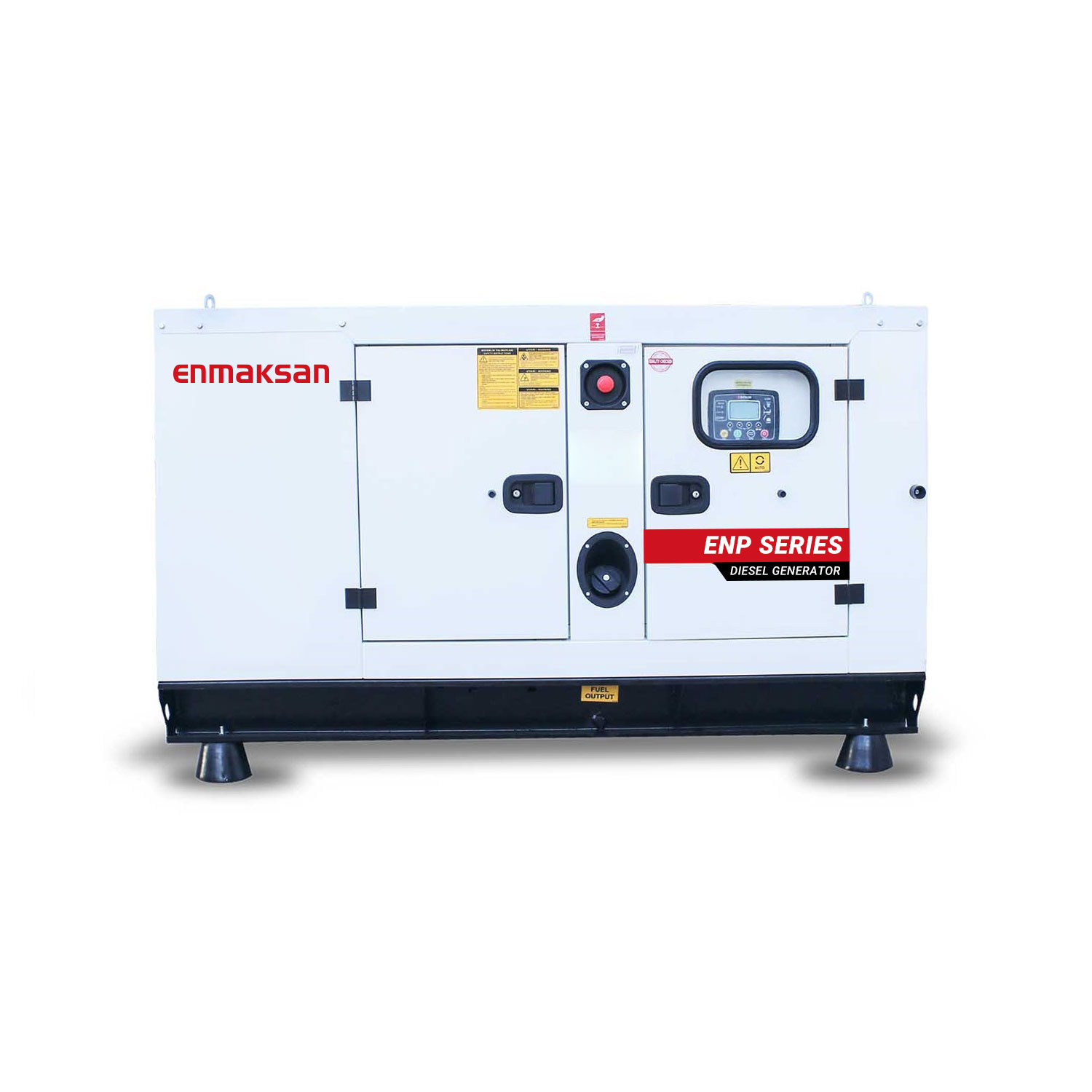

Genset Brand | Enmaksan Generator | |
Genset Model | EN15P | |
Standby Power | kVA | 15 |
Prime Power | kVA | 13 |
Frequency | Hz | 50 |
Voltage | V | 230/400 |
Phase | 3 | |
Fuel | Diesel | |
Control Panel | Datakom 500 | |
Country of Origin | Turkey |
Engine Brand | PERKINS | |
Engine Model | 403A-15G1 | |
Standby Power | kWm | 13,3 |
Prime Power | kWm | 12 |
Fuel Type | Diesel | |
Number of Cylinders and Type | 3 -Vertical In-Lıne | |
Bore x Stroke | mm | 84×90 |
Total Displacement | L | 1,496 |
Aspiration | Naturally Aspirated | |
Compression Ratio | 22.5:1 | |
Rated Speed | rpm | 1500 |
Injection Type and System | Indirect injection | |
Governor System | Mechanical | |
Operating Voltage | Vdc | 12 |
Cooling System | Water Cooled | |
Air Filter Type | Dry Type |
Maranello | M15 | |
Stamford | PI044G | |
Leroy Somer | TAL A40 |
Dimensions Without Canopy and Weight |
||
L x W x H | mm | 1550x820x1080 |
Weight | kg | 450 |
Fuel Tank Capacity | kg | 70 |
Dimensions With Canopy and Weight |
||
L x W x H | mm | 1900x920x1340 |
Weight | kg | 600 |
Fuel Tank Capacity | lt | 70 |
Desibel | db(A) | 65-75 |
