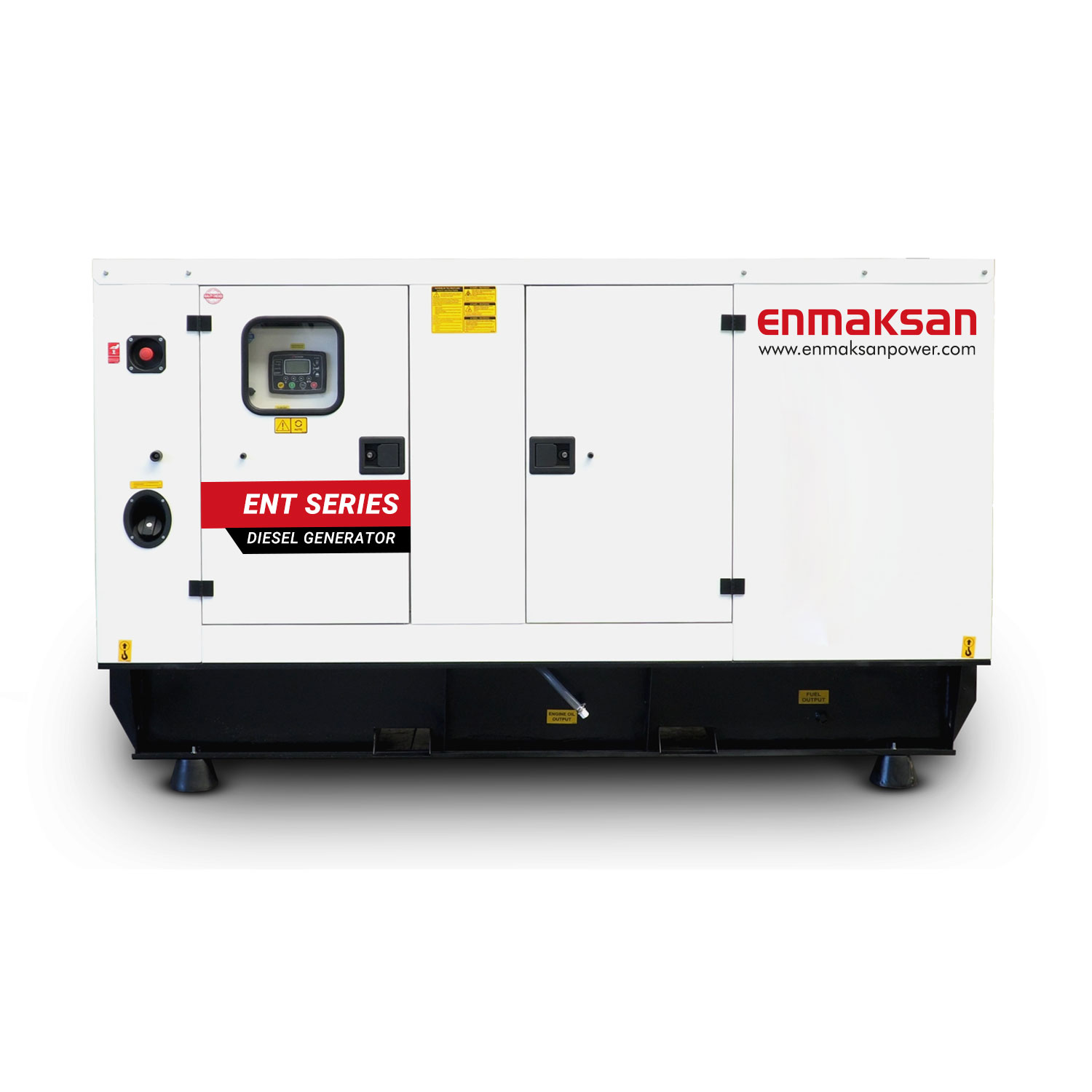

EN77T

DIESEL GENERATOR SETS

EN77T

Product Documents

Datasheet

EN77T
Category:

Genset Brand Enmaksan Power
Genset Model EN77T
Standby Power kVA 77
Prime Power kVA 70
Frequency Hz 50
Voltage V 230/400
Phase 3
Fuel Diesel
Control Panel Datakom 500
Country of Origin Turkey
Engine Brand TUMOSAN
Engine Model 4DT39G195C
Standby Power kWm 69,8
Prime Power kWm 63,5
Fuel Type Diesel
Number of Cylinders and Type 4 – Line
Bore x Stroke mm 106,5×115
Total Displacement L 3,98
Aspiration Turbocharge
Compression Ratio 17:1
Rated Speed rpm 1500
Injection Type and System Direct injection
Governor System Mechanics
Operating Voltage Vdc 12
Cooling System Water Cooled
Certification Stage III A
Maranello M83

Dimensions Without Canopy and Weight

L x W x H mm TBA
Weight kg TBA
Fuel Tank Capacity kg TBA

Dimensions With Canopy and Weight

L x W x H mm TBA
Weight kg TBA
Fuel Tank Capacity lt TBA
Desibel db(A) 65-75
